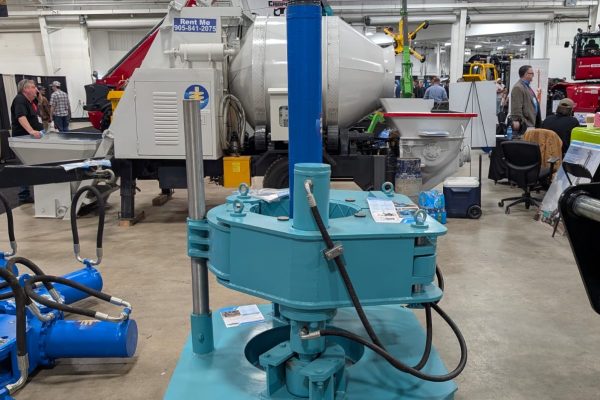

Ougan Group D508 Small Diameter Casing Puller

Max clamping force: 25t
Max pulling force: 47t
Pulling stroke: 300mm
Casing diameter range:
152 mm / 5.8″
219 mm / 8.6″
273 mm / 10.75″
325 mm / 12.8″
355 mm / 14″
406mm / 16″
457 mm / 18″
508mm / 20″
Engine model: KubotaD1703-M-DI-E4B-CBH1T
Engine power: 17kW
Output flow: 100 l/min
Working pressure: 25MPa
